Prompt Editor

The Prompt Editor provides a web interface for editing extraction prompt templates used in Steps 1-3 of the pipeline. Each of the nine concepts has an editable template stored in the database.

Accessing the Prompt Editor

Navigate to Tools > Prompt Editor or direct URL: /tools/prompts

Admin Access Required

The Prompt Editor is visible only to authenticated admin users.

Pipeline Structure

Templates are organized by pipeline step and concept type:

Step Name Concepts
Step 1 Contextual Framework Roles (R), States (S), Resources (Rs)
Step 2 Normative Requirements Principles (P), Obligations (O), Constraints (Cs), Capabilities (Ca)
Step 3 Temporal Dynamics Actions (A), Events (E)

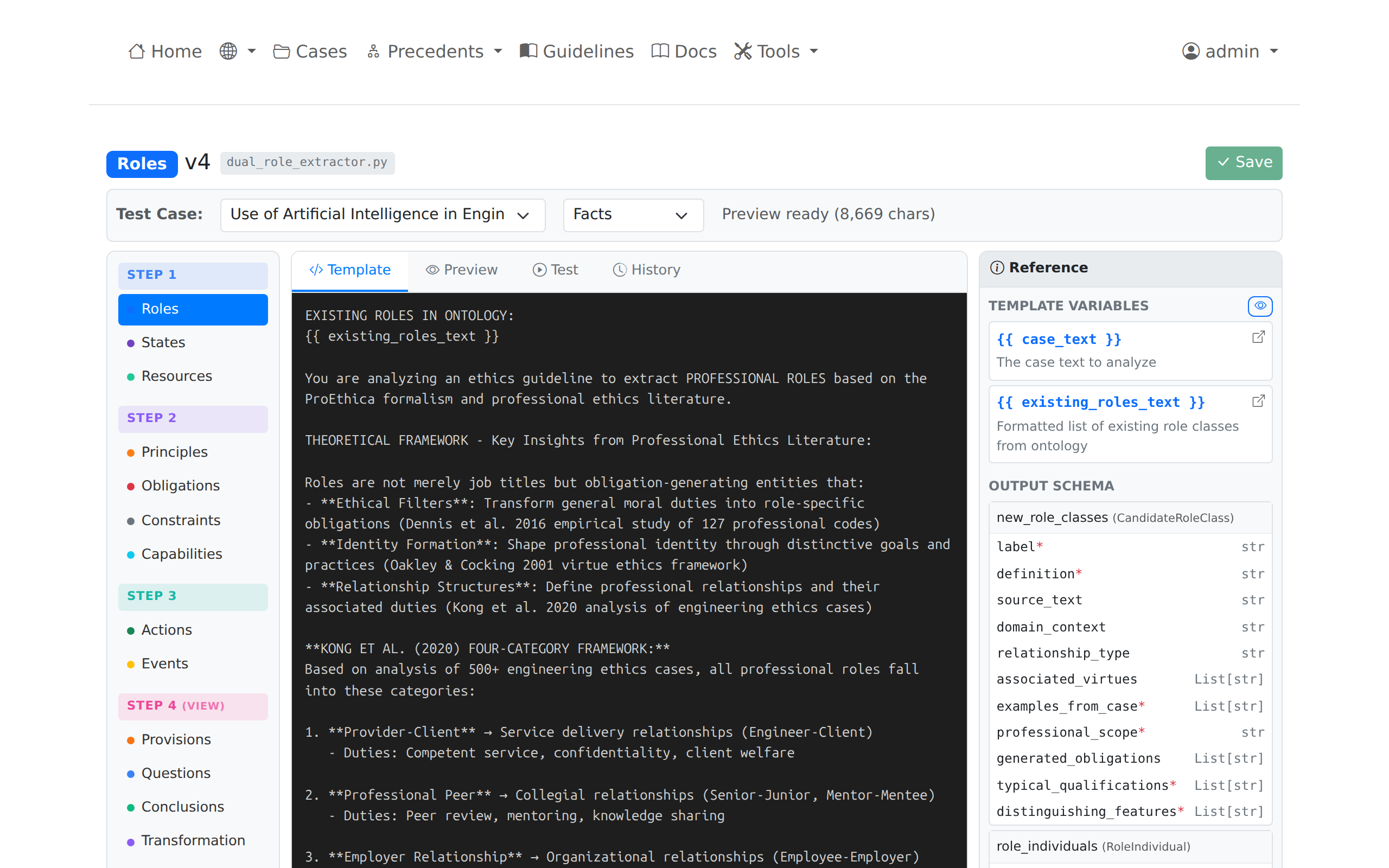

Prompt Editor Navigation Sidebar navigation showing the three pipeline steps and their concepts

Template Editor

Selecting a Template

  1. Click a concept in the left sidebar (e.g., "Roles" under Step 1)
  2. The template editor loads for that concept
  3. Domain selector allows switching between domain-specific templates

Editor Interface

Prompt Editor Template Template editor showing the Jinja2 template with variable placeholders

The editor displays:

Section Description
Template Header Concept name, step, domain selector
Template Text Editable Jinja2 template content
Variable List Available template variables
Action Buttons Save, Preview, Test, History

Template Syntax

Templates use Jinja2 syntax with variable placeholders:

Extract {{ concept_type }} from the following case text.

Case Text:
{{ case_text }}

Existing {{ concept_type }} in the ontology:
{{ existing_entities_text }}

{{ mcp_context }}

Common Variables

Variable Source Description
{{ case_text }} Document section Text from Facts or Discussion section
{{ existing_entities_text }} OntServe MCP Existing entities for deduplication
{{ mcp_context }} OntServe MCP Additional ontology context
{{ concept_type }} Template config Current concept being extracted

Preview Function

The Preview function renders a template with actual case data without calling the LLM.

Using Preview

  1. Select a case from the dropdown
  2. Choose section type (Facts or Discussion)
  3. Click Preview

Prompt Editor Preview Preview panel showing the fully rendered prompt with case context

Preview Output

The preview shows:

  • Fully rendered prompt text
  • Character count
  • Variables that were resolved
  • Case title and section type

Preview validates that variables resolve correctly before running extraction.

Test Extraction

Test Extraction executes the template against the LLM and displays results.

Running a Test

  1. Select a case and section type
  2. Click Test Extraction
  3. Wait for LLM response (10-30 seconds)

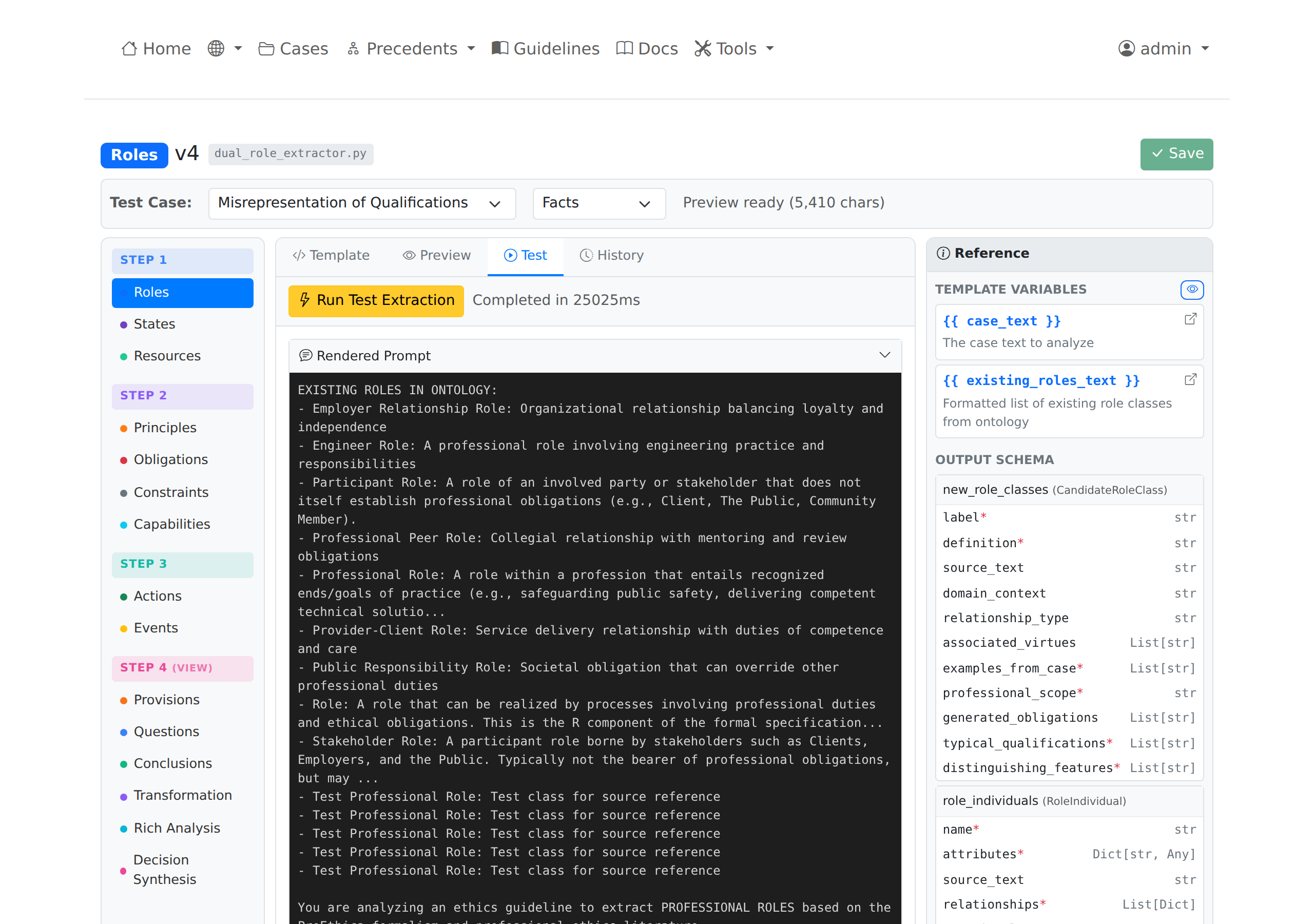

Prompt Editor Test Results Test results showing extracted entities from LLM response

Test Output

Section Content
Rendered Prompt The prompt sent to the LLM
Raw Response Raw JSON from the LLM
Parsed Entities Structured entity data
Execution Time Duration in milliseconds
Model LLM model used

Test results are not saved to the database. Use the standard extraction pipeline to persist results.

Variable Inspector

The Variable Inspector shows how each template variable resolves for a given case.

Accessing Variable Inspector

  1. Select a case and section type
  2. Click Inspect Variables

Inspector Output

For each variable:

Field Description
Name Variable name (e.g., case_text)
Type Python type (string, list, dict)
Length Character count
Preview First 500 characters
Full Value Expandable full content

This helps debug template issues when variables do not render as expected.

Version History

The Prompt Editor maintains version history for all template changes.

Viewing History

  1. Click Version History on any template
  2. View list of previous versions with timestamps
  3. Compare current template against previous versions

Version Information

Field Description
Version Number Sequential version identifier
Changed At Timestamp of change
Changed By User or system that made the change
Description Change description (if provided)

Restoring Previous Versions

  1. Click Version History
  2. Select the version to restore
  3. Click Restore This Version
  4. Current template updates, new version created

Restore operations create a new version entry preserving the full history.

Saving Changes

Save Workflow

  1. Edit the template text
  2. Optionally add a change description
  3. Click Save

Saving creates a new version and increments the version number.

Validation

The editor validates:

  • Jinja2 syntax correctness
  • Required variable presence
  • Template renders without errors

Invalid templates cannot be saved.

Best Practices

Template Design

  • Keep instructions clear and specific
  • Include examples of expected output format
  • Reference existing entities to avoid duplicates
  • Specify JSON output structure explicitly

Testing Changes

  1. Use Preview first to check variable resolution
  2. Run Test Extraction on a known case
  3. Compare results against expected entities
  4. Save only after validating output quality

Version Management

  • Add descriptive change notes when saving
  • Review history before major changes
  • Restore previous version if quality degrades

Database Storage

Templates are stored in PostgreSQL:

Table Purpose
extraction_prompt_templates Active templates
extraction_prompt_template_versions Version history

Template Fields

Field Description
step_number Pipeline step (1, 2, or 3)
concept_type Concept name (roles, principles, etc.)
domain Domain (engineering, medical, etc.)
template_text Jinja2 template content
version Current version number
is_active Whether template is active

API Endpoints

Endpoint Method Purpose
/api/prompts/templates GET List all templates
/api/prompts/template/<id> GET Get template by ID
/api/prompts/template/<id> PUT Update template
/api/prompts/template/<id>/preview POST Preview rendering
/api/prompts/template/<id>/test-run POST Execute test extraction
/api/prompts/template/<id>/versions GET Get version history
/api/prompts/template/<id>/revert/<ver> POST Restore version
