Entity Review

The entity review workflow validates extracted concepts before commitment to the ontology.

Login Required

Editing and committing entities requires authentication.

Overview

After each extraction pass, entities enter a review queue:

  1. Validate accuracy of extracted entities
  2. Edit labels and definitions
  3. Match to existing ontology classes
  4. Approve new classes when needed
  5. Commit validated entities

Accessing Review

After extraction completes, the entity review page displays automatically. Access it via:

  • Pipeline step completion redirect
  • Entity review link in the pipeline sidebar
  • Direct URL: /scenario_pipeline/case/<case_id>/entities/review (Pass 2: append /pass2)

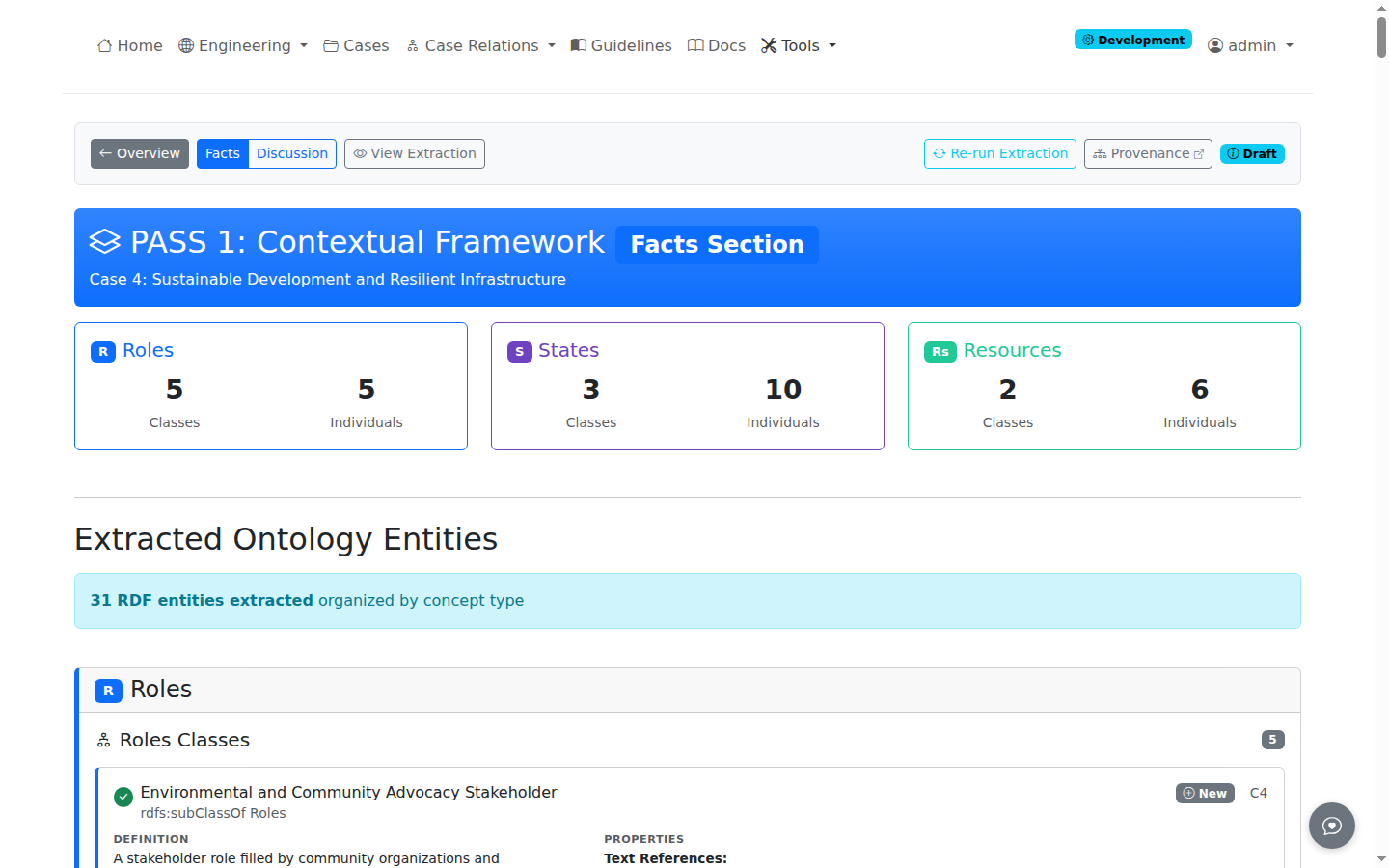

Entity Review Interface

Interface Layout

Entities display as cards organized by concept type (e.g., Roles, States, Resources). Each concept type section shows a count of classes and individuals.

Section Description
Concept Type Sections Cards grouped by type with color-coded headers
Available Classes Existing ontology classes (collapsed by default)
Section Toggle Switch between Facts and Discussion results (Steps 1-2)
Actions Re-run Extraction, Provenance, Commit controls

Entity Cards

Each entity displays as a card with a 5px color-coded left border matching its concept type.

Card contents:

Element Description
Label Entity name (e.g., "Engineer")
Type rdfs:subClassOf classification
Definition Full description from extraction
Properties RDF properties grid (domain, range, etc.)
Source Text Original case text quotes
Match Badge Ontology match status
Delete Button Remove unpublished entities

Match Status Badges

Badge Color Meaning
Linked Green High-confidence match to ontology class (>= 0.90)
Review Clickable Lower-confidence match requiring manual review
New Gray No matching ontology class found

Clicking a Review badge opens the match details modal showing the proposed ontology class and confidence score.

Entity Management

Deleting Entities

Unpublished entities show a delete button (X icon). Published entities display a green check badge and cannot be deleted from the review interface.

Duplicate Entities

The Reconcile step (between Steps 3 and 4) handles deduplication automatically. For manual cleanup, delete duplicates individually from the review cards.

Class Assignment

Entities are automatically matched to existing ontology classes during extraction. The match confidence determines the badge displayed:

  • Linked (>= 0.90) - Automatically assigned to the matching ontology class
  • Review (< 0.90) - Requires manual confirmation via the match details modal
  • New - No match found; entity creates a new ontology class on commit

Committing Entities

OntServe Commit

The OntServe commit publishes entities from temporary_rdf_storage to the ontology. The pipeline performs two commits:

  1. First commit (after Reconcile) - Steps 1-3 base entities (9 component types)
  2. Second commit (after Step 4) - Step 4 synthesis entities (8 additional types)

Each commit generates a TTL file and registers entities in the OntServe database.

What Commit Does

Action Result
Generates TTL (Turtle) file with RDF triples
Registers Entities in OntServe database
Marks Entities as published in temporary_rdf_storage
Links Case to ontology graph

Uncommit

Previously committed entities can be removed via the uncommit operation, which deletes the TTL file and OntServe database registrations.

Re-run Extraction

Each step page includes a Re-run Extraction button that clears existing entities for that step and runs extraction again.

OntServe Integration

Available Classes Source

Available classes fetched from OntServe MCP via:

  • get_entities_by_category() method
  • Real-time ontology query
  • Cached for performance

Connection Status

Header shows OntServe status:

Status Meaning
Green Connected, classes available
Yellow Degraded, limited function
Red Disconnected, no classes

Fallback Mode

If OntServe unavailable:

  • Available classes section empty
  • Extraction still works
  • Commit stores locally
  • Push to ontology deferred

Troubleshooting

Empty Available Classes

If Available Classes empty:

  1. Check OntServe MCP running
  2. Verify connection status
  3. Restart OntServe if needed

Commit Failed

If commit fails:

  1. Check database connection
  2. Verify entity data valid
  3. Check for constraint violations
  4. Review error message

Lost Entities

If entities disappear:

  1. Check if Clear was clicked
  2. Review extraction session
  3. Check database directly
  4. Re-run extraction if needed
