Pipeline Automation¶

This guide covers batch case processing through the automated extraction pipeline.

Overview¶

Pipeline automation enables:

Batch extraction across multiple cases
Background processing via Celery tasks
Real-time progress monitoring
Queue management for bulk operations

Prerequisites¶

Pipeline automation requires:

Service	Port	Purpose
Redis	6379	Message broker
Celery Worker	-	Background tasks
ProEthica	5000	Web interface
OntServe MCP	8082	Ontology validation

Starting Services¶

Option 1: Single Command (Recommended)¶

./scripts/start_all.sh start

This starts all required services in correct order.

Option 2: Manual Start¶

Terminal 1 - Redis:

redis-server

Terminal 2 - Celery Worker:

cd /path/to/proethica
source venv-proethica/bin/activate
PYTHONPATH=/path/to/parent:$PYTHONPATH celery -A celery_config worker --loglevel=info

Terminal 3 - Flask:

cd /path/to/proethica
source venv-proethica/bin/activate
PYTHONPATH=/path/to/parent:$PYTHONPATH python run.py

Service Management¶

./scripts/start_all.sh status   # Check status
./scripts/start_all.sh stop     # Stop services
./scripts/start_all.sh restart  # Restart all

Pipeline Dashboard¶

Accessing Dashboard¶

Navigate to: Tools > Pipeline Dashboard (requires admin login)

Direct URL: /pipeline/dashboard

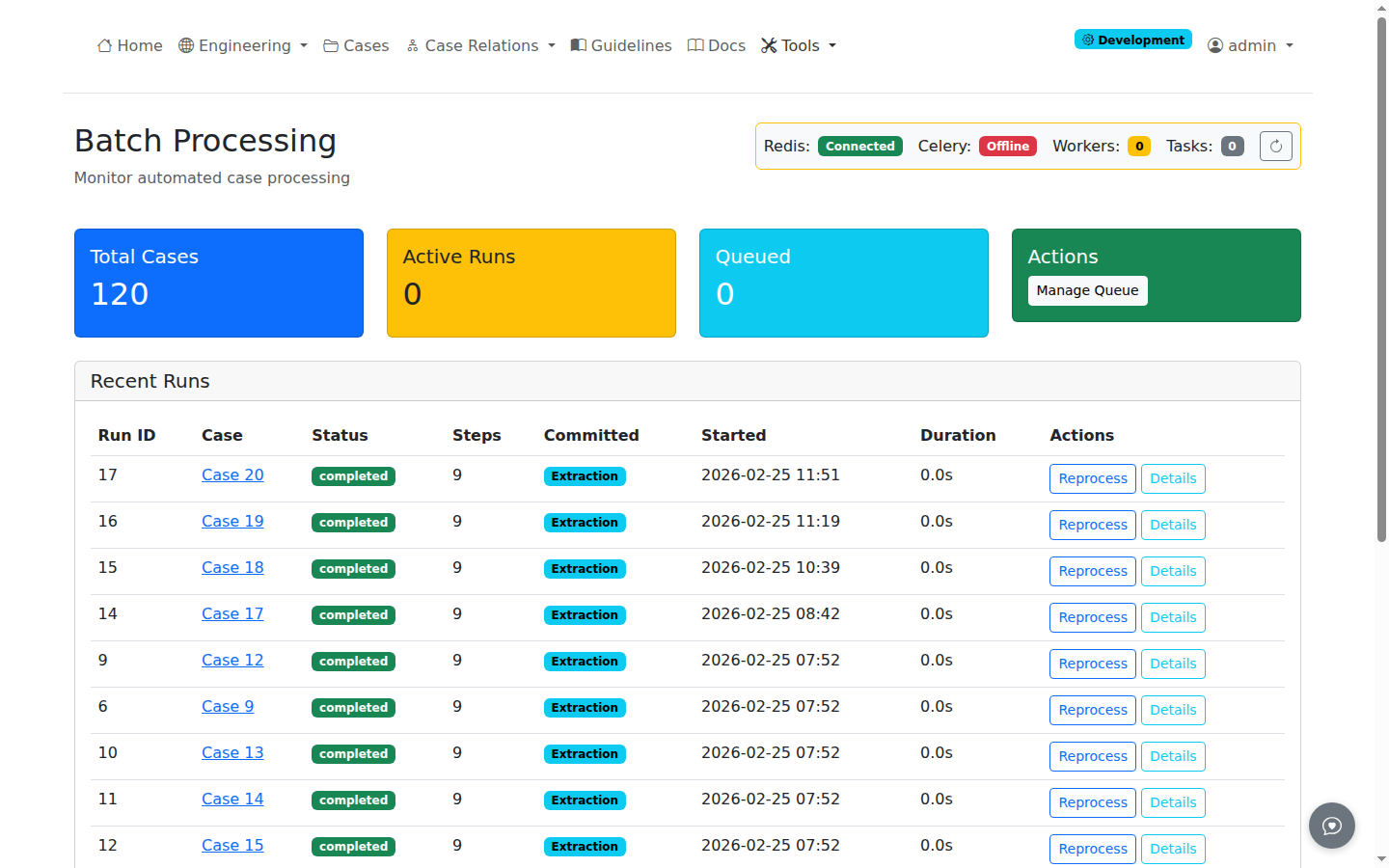

Pipeline Dashboard

Dashboard Layout¶

Section	Description
Service Status	Health of Redis, Celery, Workers (top right)
Stats Cards	Total Cases, Active Runs, Queued count
Recent Runs	History with status, duration, and actions
Controls	Manage Queue, Reprocess, Details buttons

Processing Time¶

Typical extraction time per case:

Metric	Time
Average	~10 minutes
Range	8-15 minutes depending on case complexity
Steps	5 extraction passes (Steps 1, 1b, 2, 2b, 3)

Processing is currently sequential (one case at a time). Parallel processing across multiple workers is planned for future releases to reduce batch processing time.

Service Status¶

The header widget shows real-time status:

Indicator	Meaning
Redis	Message broker connection
Celery	Worker process status
Workers	Active worker count
Tasks	Queue depth

Overall Health¶

Status	Description
Healthy	All services operational
Degraded	Some services unavailable
Critical	Core services offline

Status API¶

Programmatic access:

curl http://localhost:5000/pipeline/api/service-status

Queue Management¶

Accessing the Queue¶

Navigate to: Pipeline Dashboard > Manage Queue button

Or direct URL: /pipeline/queue

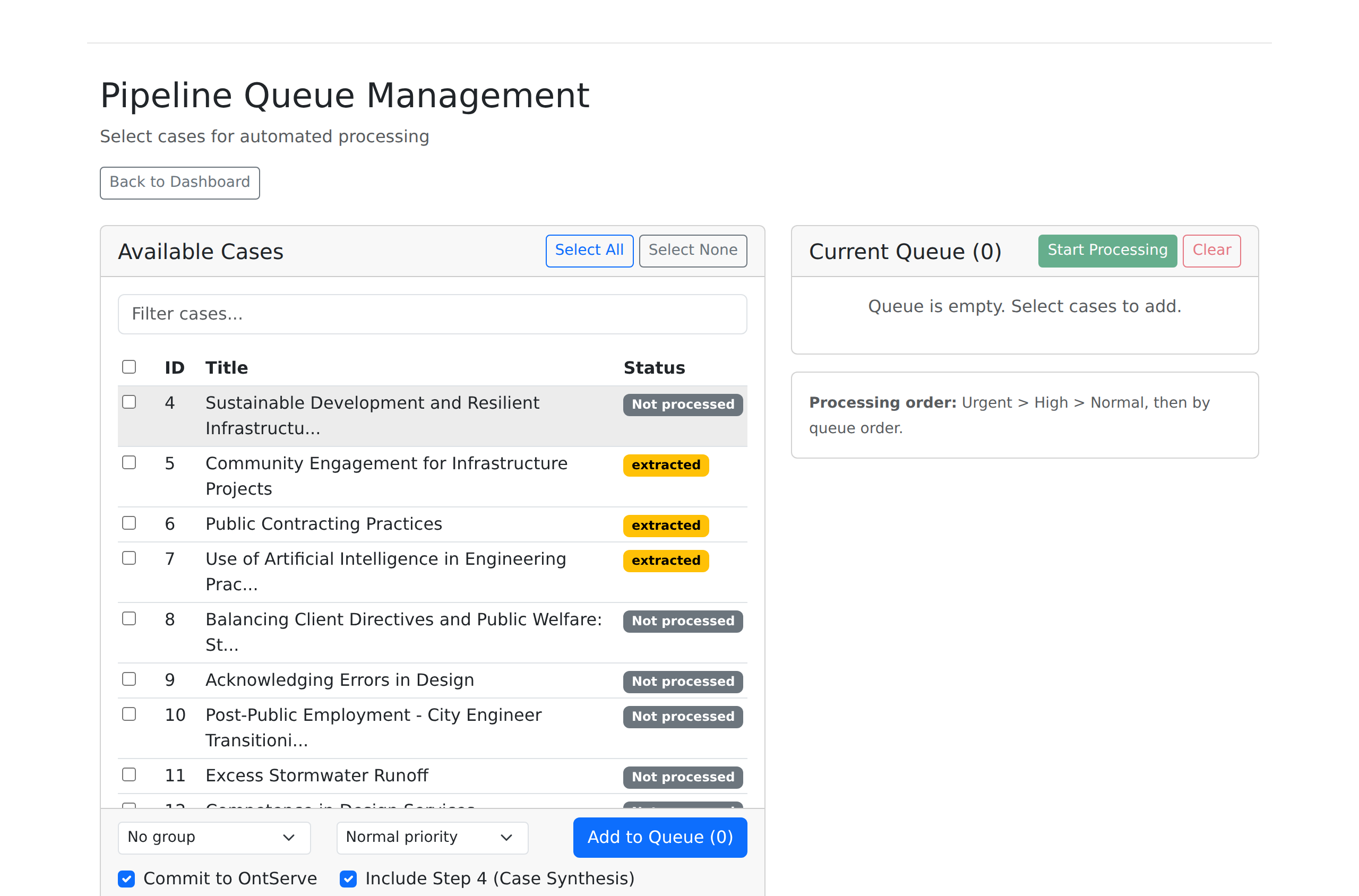

Pipeline Queue Queue management page showing pending cases and queue controls

Queue Page Features¶

Section	Description
Available Cases	Cases not yet processed, ready to add to queue
Current Queue	Cases waiting to be processed
Queue Controls	Add selected cases, clear queue, process next

Adding Cases to Queue¶

Check cases in the Available Cases list
Click Add Selected to Queue
Cases move to Current Queue section

Queue Actions¶

Action	Description
Add Selected	Add checked cases to queue
Clear Queue	Remove all pending cases from queue
Process Next	Start processing the next queued case
Remove	Remove individual case from queue

Queue Statuses¶

Status	Meaning
queued	Waiting in queue
running	Currently processing
completed	Successfully finished
failed	Error occurred
cancelled	User cancelled
superseded	Replaced by reprocess

Running Pipelines¶

Single Case¶

To process a single case:

Go to case detail page
Click Queue for Processing
Monitor in Pipeline Dashboard

Batch Processing¶

To process multiple cases:

Go to Pipeline Dashboard
Select cases from list
Click Add to Queue
Monitor progress

Priority Processing¶

Cases processed in queue order. For priority:

Use direct extraction (non-automated)
Or reorder queue manually

Monitoring Progress¶

Real-Time Updates¶

Active runs show:

Current step (1, 1b, 2, 2b, 3)
Entity count extracted
Progress percentage
Estimated time remaining

Refresh¶

Dashboard auto-refreshes every 5 seconds. Manual refresh also available.

Logs¶

View detailed logs:

Click run in Active Runs
Expand log section
View extraction output

Pipeline Controls¶

Cancel Running¶

To cancel a running pipeline:

Click Cancel on active run
Confirms cancellation
Celery task revoked
Run marked cancelled

Reprocess Case¶

To reprocess a completed case:

Click Reprocess button
Clears existing entities
Marks old run as superseded
Starts fresh extraction

Clear Case¶

To clear without reprocessing:

python scripts/clear_case_extractions.py <case_id>

Options: - --include-runs: Also clear pipeline_run records

Pipeline Architecture¶

Extraction Flow¶

Queue Request
    ↓
Celery Task Created
    ↓
Step 1: Facts (Roles, States, Resources)
    ↓
Step 1b: Discussion (Roles, States, Resources)
    ↓
Step 2: Facts (Principles, Obligations, Constraints, Capabilities)
    ↓
Step 2b: Discussion (Principles, Obligations, Constraints, Capabilities)
    ↓
Step 3: Temporal (Actions, Events, Causal Relationships)
    ↓
Complete

Entity Storage¶

During pipeline:

Entities stored in temporary_rdf_storage
Linked by extraction_session_id
Prompts stored in extraction_prompts

Pipeline Run Record¶

Each run creates pipeline_run record:

Field	Description
`id`	Run identifier
`case_id`	Case being processed
`status`	Current status
`current_step`	Active step
`entity_count`	Entities extracted
`started_at`	Start timestamp
`completed_at`	End timestamp
`error_message`	Error if failed

Celery Configuration¶

Task Settings¶

From celery_config.py:

task_time_limit = 7200      # 2 hour hard limit
task_soft_time_limit = 6000 # 100 minute soft limit
worker_prefetch_multiplier = 1  # One task at a time

Queue Name¶

Default queue: celery

Result Backend¶

Results stored in Redis DB 1.

Error Handling¶

Task Failures¶

If task fails:

Error captured in pipeline_run
Partial entities preserved
Can retry or reprocess

Timeout¶

If task times out:

Soft limit triggers graceful stop
Hard limit forces termination
Partial progress saved

Recovery¶

After failure:

Review error message
Fix underlying issue
Reprocess case

Utility Scripts¶

Clear Case Extractions¶

python scripts/clear_case_extractions.py <case_id> [--include-runs]

Cleanup Orphaned Entities¶

python scripts/cleanup_orphaned_entities.py [--delete]

Check Queue¶

celery -A celery_config inspect active
celery -A celery_config inspect reserved

Troubleshooting¶

Services Not Starting¶

Check each service:

redis-cli ping  # Should return PONG
celery -A celery_config status  # Should show workers
curl http://localhost:5000/  # Should return page

Tasks Not Processing¶

Check Celery worker running
Verify Redis connection
Check worker logs for errors

Memory Issues¶

Long-running tasks may use memory:

Monitor worker memory
Restart workers periodically
Process fewer cases at once

Orphaned Entities¶

If entities without sessions:

python scripts/cleanup_orphaned_entities.py --delete
