Running Extractions

Steps 1-3 perform concept extraction using ontology-validated definitions via MCP queries to OntServe. All extractions use SSE streaming for real-time progress display. This guide covers running the extraction pipeline on cases.

Login Required

Running extractions requires authentication. Unauthenticated users can view completed extractions but cannot run new ones.

Overview

Steps 1-3 extract the nine base concepts. Steps 1-2 extract separately from the Facts and Discussion sections. Step 3 performs a unified extraction from the full case text using LangGraph orchestration.

Step Name Concepts Extraction Mode
Step 1 Contextual Framework Roles, States, Resources Pass 1 (Facts), Pass 2 (Discussion)
Step 2 Normative Requirements Principles, Obligations, Constraints, Capabilities Pass 1 (Facts), Pass 2 (Discussion)
Step 3 Temporal Dynamics Actions, Events, causal chains, temporal relations Unified (full case text)

After Steps 1-3, the pipeline continues with Reconcile (entity deduplication), OntServe commit, Step 4 (whole-case synthesis), a second OntServe commit, and QC audit. See Pipeline Terminology for definitions.

Starting Extraction

Access the Pipeline

Navigate to any case detail page and click the Pipeline button in the top action bar, or access the per-case pipeline dashboard directly at /cases/<id>/pipeline. The pipeline status bar with numbered step buttons is visible to authenticated users.

Steps must be processed in sequence. Completed steps display as green; incomplete steps show the step number. Click any available step to begin extraction.

Step 1: Contextual Framework

Pass 1 (Facts)

  1. Click the Step 1 button on the case page
  2. The extraction page displays the Facts section text
  3. Click Full Contextual Framework Pass to extract all three concept types. Roles extract first, then States and Resources run in parallel.

The full pass extracts all three concept types in sequence.

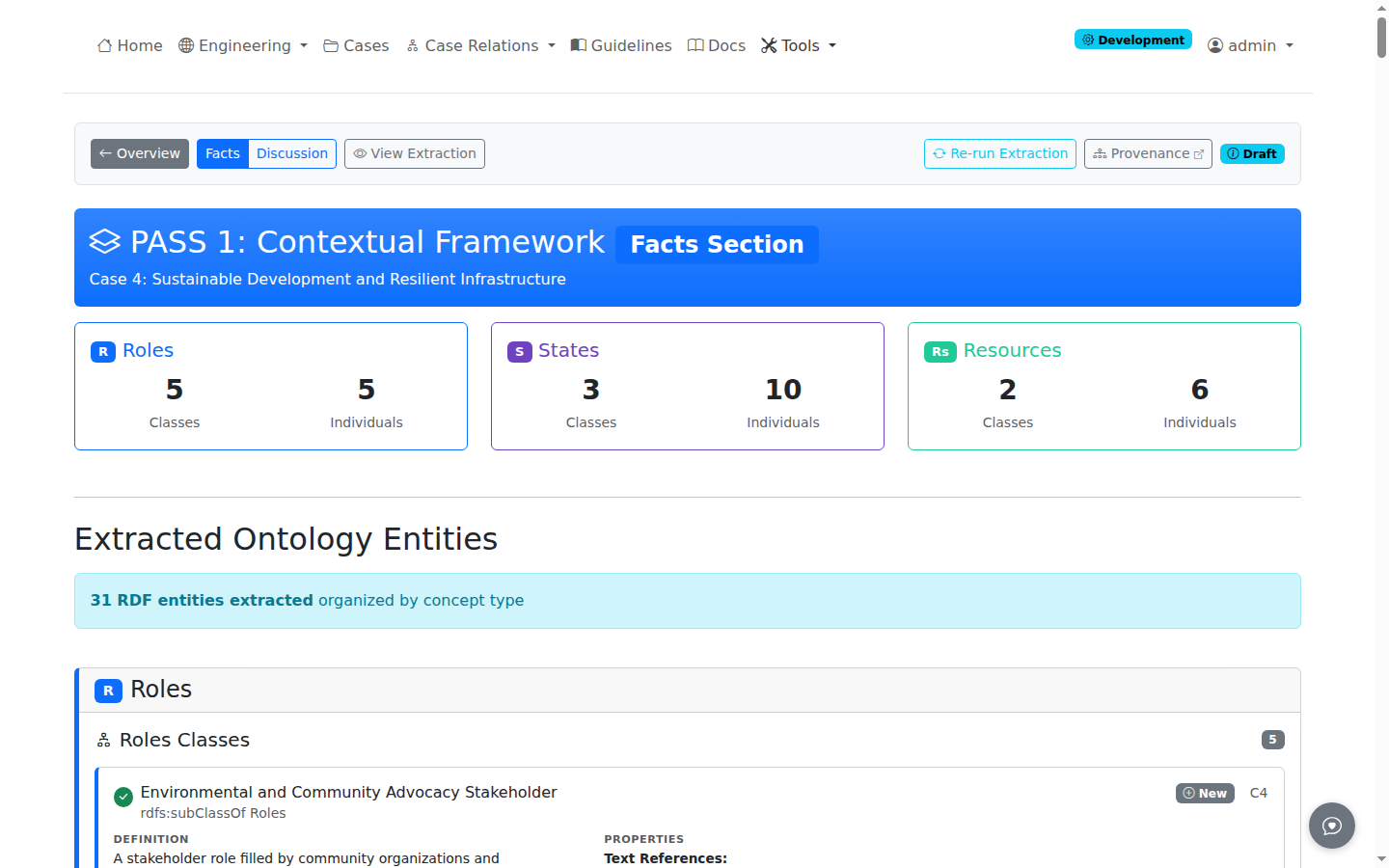

Step 1 Extraction

Expected entity counts:

Concept Description Typical Count
Roles Professional positions 3-6 entities
States Situational conditions 10-20 entities
Resources Referenced standards 15-30 entities

Pass 2 (Discussion)

After completing Pass 1 (Facts), click Discussion Section to run the same extraction against the Discussion section text.

Step 2: Normative Requirements

Pass 1 (Facts)

  1. Click the Step 2 button on the case page
  2. Click Full Normative Requirements Pass to extract all four concept types. Principles extract first, then Obligations, then Constraints and Capabilities run in parallel.

Unlike Step 1, Step 2 does not have individual per-concept buttons.

Expected entity counts:

Concept Description Typical Count
Principles Abstract ethical standards 15-25 entities
Obligations Concrete duties 15-25 entities
Constraints Prohibitions and limits 15-20 entities
Capabilities Permissions and options 15-25 entities

Pass 2 (Discussion)

Click Discussion Section after completing Pass 1 (Facts) to extract from the Discussion section.

Step 3: Temporal Dynamics

Step 3 uses LangGraph orchestration to extract from the full case text (Facts and Discussion combined) in a single unified pass, unlike Steps 1-2 which use separate passes per section.

  1. Click the Step 3 button on the case page
  2. Click Extract Temporal Dynamics to run the unified extraction

The extraction produces five output types displayed as separate progress cards:

Output Description Typical Count
Actions Professional responses and decisions 5-12 entities
Events Precipitating occurrences 3-8 entities
Causal Chains NESS test causal analysis 3-6 chains
Allen Relations OWL-Time temporal ordering 10-20 relations
Timeline Chronological event/action sequence 1 timeline

Reconcile

After Steps 1-3, entity deduplication merges overlapping entities across sections and passes. In manual mode, reconcile is triggered from the pipeline sidebar. In pipeline mode, reconcile runs automatically.

Step 4: Whole-Case Synthesis

Step 4 analyzes the full case text together with entities from Steps 1-3. It produces 8 additional entity types across multiple phases. See Pipeline Terminology for phase details.

Step 4 is accessed from the pipeline sidebar after reconcile completes.

Extraction Options

Re-run Extraction

Each step page includes a Re-run Extraction button to clear existing entities and run again if results need improvement.

Progress Tracking

During extraction, SSE streaming displays real-time progress with per-concept cards showing spinners, entity counts, and completion status.

Extraction Metrics

After each step:

Metric Description
Total Entities Count of extracted entities
By Type Breakdown by concept type
New Classes Entities requiring new ontology classes
Existing Matches Entities matching ontology

Example: Case 24-2

For NSPE Case 24-2 (AI in Engineering Practice):

Step 1 Results:

  • Roles (4): Engineer, Client, Employer, State Board
  • States (16): Engineer lacks AI competence, Project uses AI tools
  • Resources (29): NSPE Code II.1.a, State licensing requirements

Step 2 Results:

  • Principles (18): Hold paramount public safety, Practice competence
  • Obligations (18): Verify AI-generated designs, Disclose limitations
  • Constraints (18): Cannot certify beyond competence
  • Capabilities (20): Can hire specialists, Can request extensions

Step 3 Results:

  • Actions (7): Uses AI without verification, Certifies design
  • Events (3): Client requests AI design, Board receives complaint

Troubleshooting

Extraction Timeout

Long cases may timeout:

  1. Check LLM API status
  2. Retry extraction
  3. Contact administrator if persistent

Missing OntServe Connection

If "Available Classes" shows empty:

  1. Verify OntServe MCP is running
  2. Check connection status in header
  3. Restart OntServe if needed

Duplicate Entities

LLM may extract duplicates:

  1. Review carefully during entity review
  2. Delete duplicates manually
  3. Use Re-run to re-extract if needed
